Basically lump breaker is proposed, so as to crush the lumps. Lump Breaker will be placed underneath of discharge of equipment. Lump breaker will have Fixed & rotating blade. Rotating Blade will be rotating with the help of geared motor. Lumps coming out will be crushed between fixed & rotating blade. Output of Lump - breaker is connected to discharge chute.
Lump breaker is for size reduction at economical price. It is for increase productivity by reducing size of lump by using less time and energy. It reduces soft products such as dry cake into sizes that can be further processed. Compact machine can be placed to reduce material into manageable size for conveyor or process equipment. It is alternate of manual breaking of partially dried lump of material like Pigments, Dyes and colours etc.
Lump is fed from the top. Wide flanged inlet area is for accommodate a greater mass. It has single shaft with evenly placed impacting fingers and fix comb on body. Shaft with Lump is brake between rotating finger and fix comb. Broken lumps are collected from bottom.

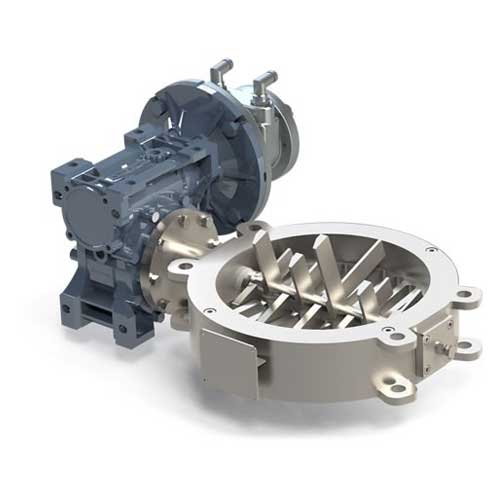

It has single shaft supported on flange mounting bearings. Bearings are bolted on fabricated body. Bars (fingers) are fixed at evenly placed on shaft. Similar size bars are fixed one side-wall of body. Bars on shaft and on body are staggered to each other. Shaft is driven through Geared Motor. Fabricated body is fixed on base frame.
